Tunnels in Iceland.

Vestfjarðagöng
9,120 m (29,921 ft)
September 1996

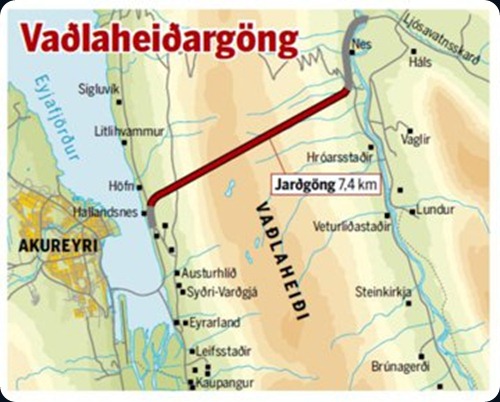

Vaðlaheiðargöng
7,400 m (24,278 ft)
2014-2016

Héðinsfjarðargöng
6,910 m (22,671 ft)
October 2, 2010

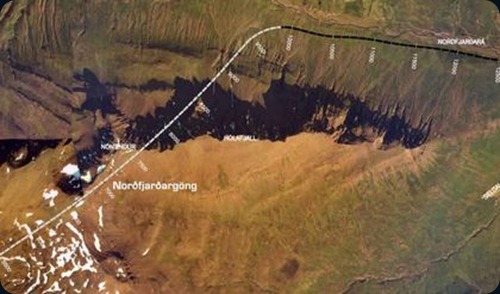

Norðfjarðargöng
6,500 m (21,325 ft)

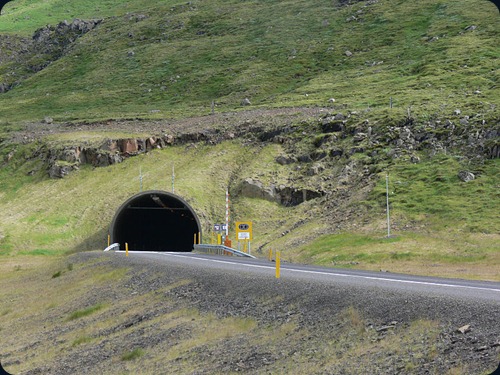

Fáskrúðsfjarðargöng
5,850 m (19,193 ft)
September 9, 2005

Hvalfjörður Tunnel
5,770 m (18,930 ft)
July 1, 1998

Between Arnarfjörður and Dýrafjörður**
5,600 m (18,373 ft)
unknown

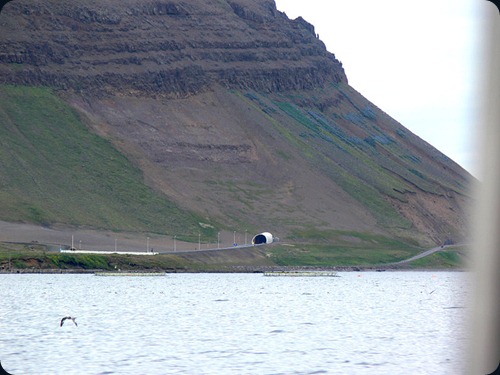

Bolungarvíkurgöng
5,156 m (16,916 ft)
September 25, 2010

Múlagöng
3,400 m (11,155 ft)
March 1, 1991

Almannaskarðsgöng
1,308 m (4,291 ft)
June 24, 2005

Strákagöng
800 m (2,625 ft)
1967

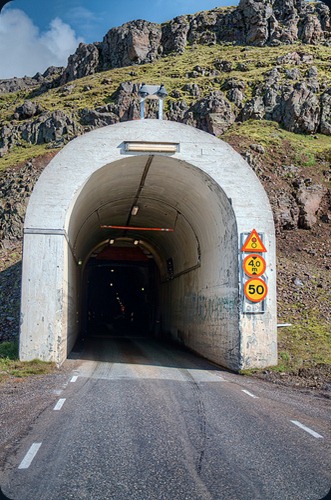

Oddskarðsgöng
640 m (2,100 ft)
1977

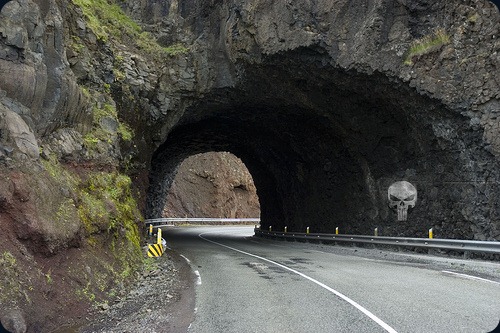

Arnardalshamar Tunnel
30 m (98 ft)
1948

  Hvalfjörður Tunnel is 5,770 m (18,930 ft) long, and reaches a depth of 165 m (541 ft) below sea level.

There are eleven open tunnels in Iceland, and three others currently under construction in the Icelandic road system. Tunnels in Iceland are usually built under mountains to prevent winter isolation of remote communities which would otherwise have to depend on high roads that often closed due to snow, to shorten distance between communities, and to increase road safety by bypassing dangerous stretches of road. A tunnel under a fjord, the Hvalfjörður Tunnel, is among the longest underwater road tunnels in the world, and goes as deep as 165 m (541 ft) below sea level.

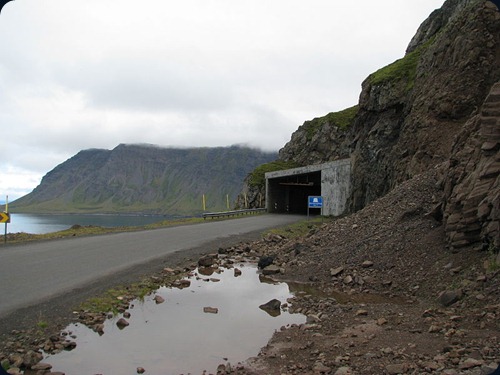

Tunneling is a relatively recent trend in Icelandic road infrastructure. It started off slowly and was at first only used in extreme circumstances. The first was opened in 1967 and provided the northern town of Siglufjörður with its first year-round road link to the rest of the country. The second tunnel, opened in 1977, replaced a difficult road over the mountain pass Oddsskarð in eastern Iceland which could only be used during the short summer and was the only road link to the town of Neskaupstaður.

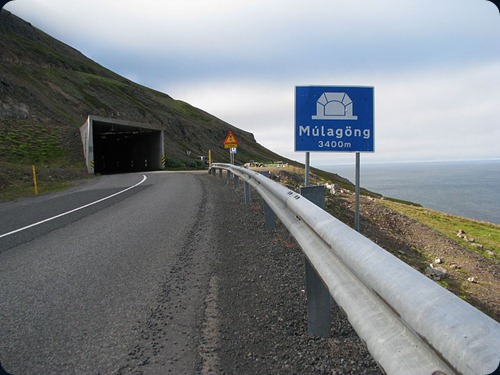

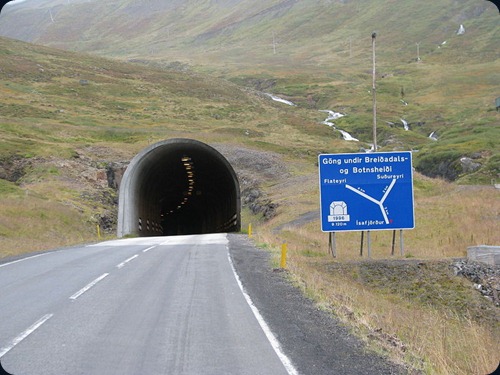

The third tunnel was opened in 1992 and replaced a very hazardous mountainside road to the northern town of Ólafsfjörður. All three of these tunnels were built as a single lane with widenings at regular intervals where vehicles coming from opposite directions can pass. As improved engineering methods made tunneling cheaper and Iceland became more prosperous in the 1990s, tunnels became viable options for places where they had not been considered before. In 1996 the Vestfjarðagöng tunnel opened in the Westfjords region, it ended the winter isolation of three villages by linking them to the town of Ísafjörður. This tunnel was the last one built with single-lane segments.

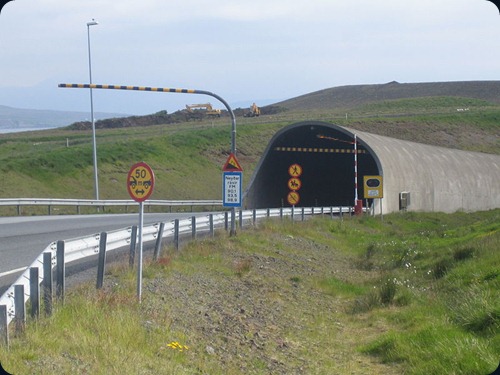

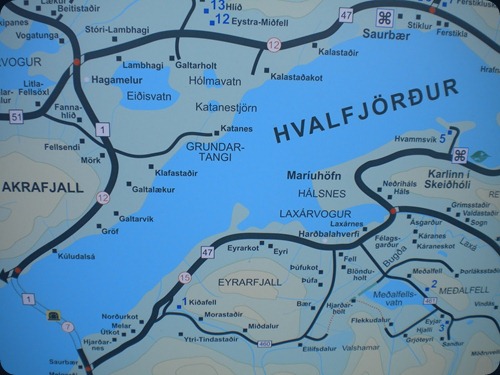

In 1998 the sub-sea Hvalfjarðargöng opened, reducing the distance from Reykjavík to the town of Akranes by 60 kilometers and consequently abolishing the ferry service between the two. The distance between Reykjavík and other destinations on the north side of the fjord Hvalfjörðurwas reduced by 45 kilometers. It is the only tunnel in Iceland to have been financed, built and operated by a private entity and as such, is also the only tunnel where tolls are charged.

The original plan assumed it would take 20 years (until 2018) to pay back the cost of building the tunnel and that the tunnel would be turned over to the state at that point but traffic has proved to be significantly higher than originally projected. So high in fact that the operator of the tunnel has suggested building a new tunnel alongside the current one since traffic is reaching the threshold mandated by European regulation (10,000 vehicles daily) where traffic in opposing directions is meant to be separated.

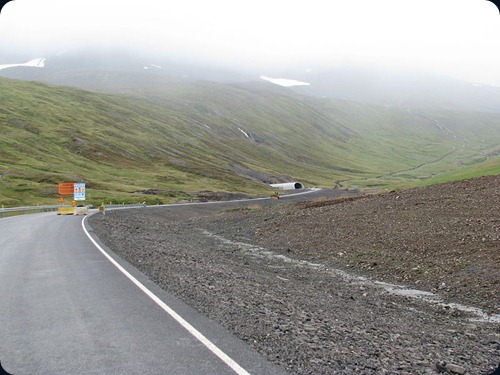

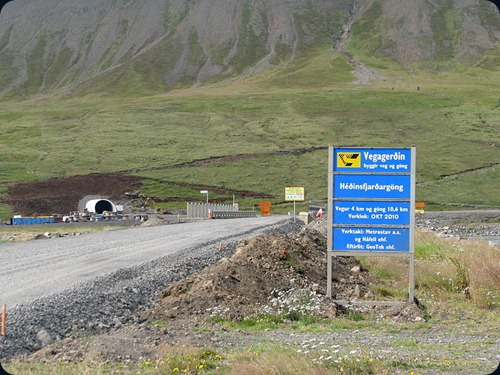

Five tunnels have opened since the turn of the century. The most recent to open are the Bolungarvíkurgöng on route 61 in Vestfirðir between Hnifsdalur and Bolungarvik, replacing the road which was often affected by rockfalls and avalanches and Héðinsfjarðargöng I and II on route 76 in Norðurland eystra between the towns Ólafsfjörður and Siglufjörður, reducing the distance between the towns to 15km.
